Examples of pipe types

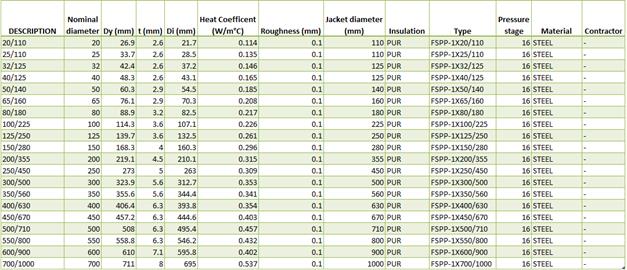

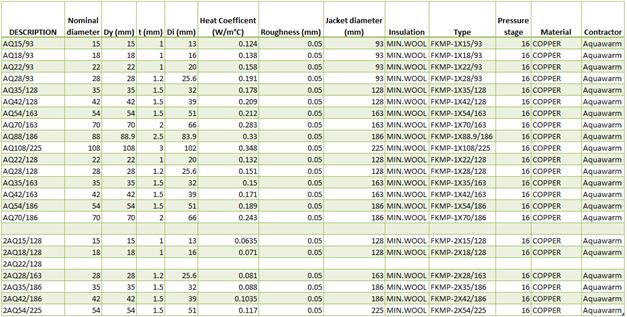

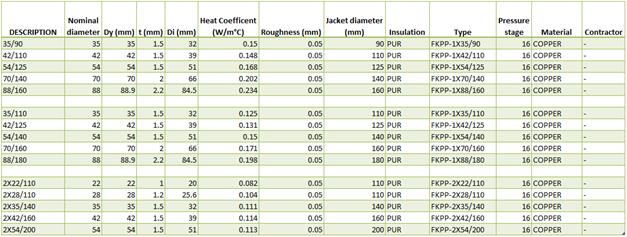

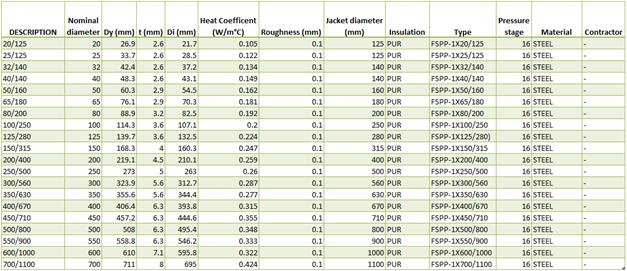

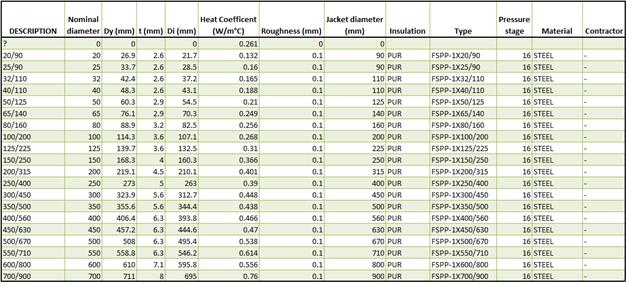

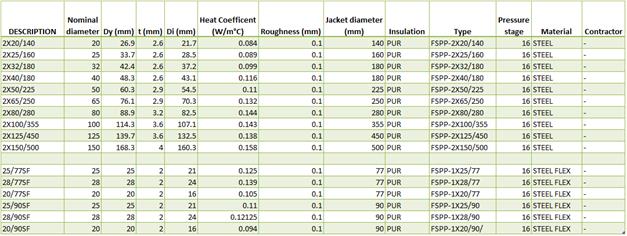

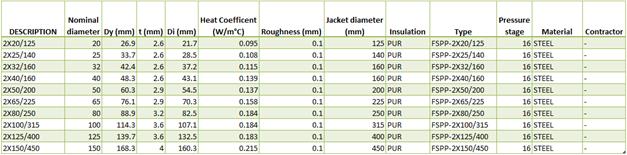

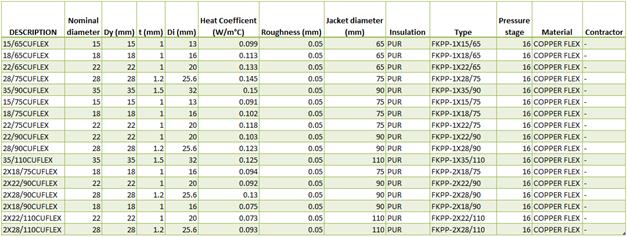

Below are some suggestions for designations and properties for common pipe types in district heating networks. The type ? with an internal diameter of 0 mm is used for pipes which are to be dimensioned.  A roughness of 0.1 mm means a pressure loss which includes the normal losses occurring at bends and branches in district heating networks. It is necessary to consider using “smoother” pipes for long transitional pipes.
