Basic elements



The calculation model for a network consists of the basic elements nodes and pipes. All numerical information is linked to these elements. A node is represented by a circle on the chart, while a pipe (comprising a supply pipe and a return pipe) is represented by a line between two nodes.

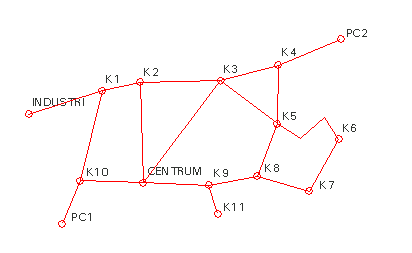

Calculation model for a district heating network. Nodes and pipes.
