Field in Master Data sync

Comment of what it is

1.     Name

Name will be used in the batch-job that initiates the synchronization to know which protocol to use

2.     Connection string

Defines where the source is and what format it has, examples can be given by clicking the icon to the right of the field

3.     Source/Table

Provides extra information to the connection string, e.g. in the case of Excel it defines the sheet name.

4.     Update/Create/Delete

Compares the existing information in Aiolos with the source and looks for differences in the following way:

Update – Updates series information in Aiolos if other information exist in the source than in Aiolos.

Create – Creates series in Aiolos if series exists in the source that doesn’t exist in Aiolos.

Delete – Deletes series in AIolos if series exists in Aiolos that doesn’t exist in source.

They can all be used in combination or one by one.

5.     Default Model

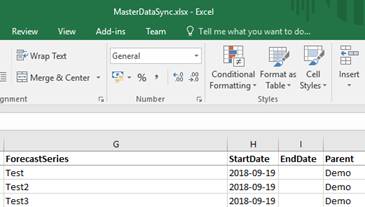

Provides information to Aiolos to create a new model using the settings from a “Sample model”. The pre-existing Sample models can be altered and new ones can be added, by creating a model as any other ordinary model but by supplying the name on the form “Sample *”, where * represents any characters, see example below:

6.     Synchronization fields

Connects desired fields in Aiolos with where inside the Source corresponding information is found, or sets any given default value written in the protocol ( in column “Default value”).

Note! TimeZone default is to import Date/Time from local SystemSettings. If you want to import a specific TimeZone use parameter “Name of Time Zone” see examples: https://support.microsoft.com/en-nz/help/973627/microsoft-time-zone-index-values

7.     Master data sync protocols

Multiple protocols can be used for different kinds of settings and synchronization types.
