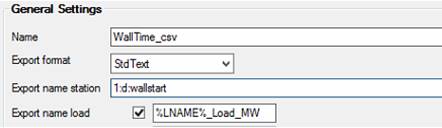

A special settings field where factor, decimal separator and time reference can be set as “factor:decimal-separator:time reference”
Example: 1:d:wallstart
|
Export Name Station |
Used for |
|
1000:d:utcstart |
Export data in kW, decimal separator is dot and time reference UTC The hour 01 equals the hour from 01-02 |
|
1:d:normstart |
Export data in MW, decimal separator is dot and time reference Local time (Normal time with no summer and winter time transition) |
|
1000:c:wallend |
Export data in kW, decimal separator is comma and time reference Wallclock time. Local time with summer and winter time transition. |
Factor – In Aiolos the load is always presented as MW or MWh. In the example we choose to multiply with 1000 to export kW instead.
Decimal separator – Write “d” for dot and “c” for comma
Time reference – wallstart (local time with start time), wallend (local time with end time), normstart (normal time with start time), normend (normal time with end time), utcstart (UTC time with start time), utcend (UTC time with end time)
Leave this field empty to go with the default setting: 1:c:wallstart
