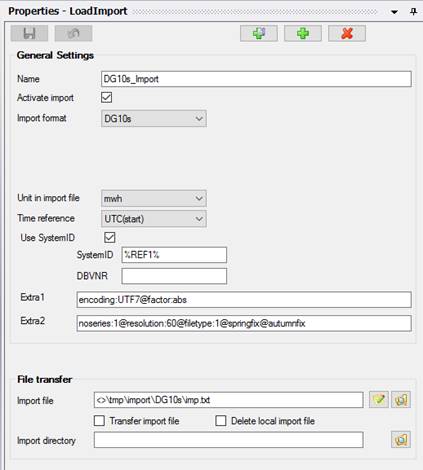

SystemID must refer to the forecast series ID in the file that the import should get data from; usually one of the import parameters %refX% or %lname% is used. Use SystemID must be checked in order to specify the ID.
DBVNR is optional settings to use, leave empty if not used. Note: from AFS version 9.1
DG10s can write .el as well as .aio* files. The file type that will be written is determined by the load file of the forecast series.
ImportFile indicates the file to be imported and the file path. The setting copes with using a wildcard like * so as not to specify an exact file name.
Extra1 field settings
If using other encoding file format or unit, you can write in Extra1 field, separated with @
Example of using other encoding format and factor:
encoding:UTF7@factor:abs
|
Name |
Meaning |
|
<encoding> |
Specify the encoding which the importfile is in. |
|
<factor>
|
The factor that is multiplied with each value when importing. Valid values are any integer or abs, which takes the absolute value |
|
<warnmissing> |
Used to indicate that missing series in file should be considered as warnings and not be ignored. |

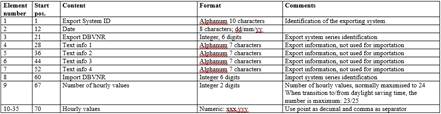

File format description:
